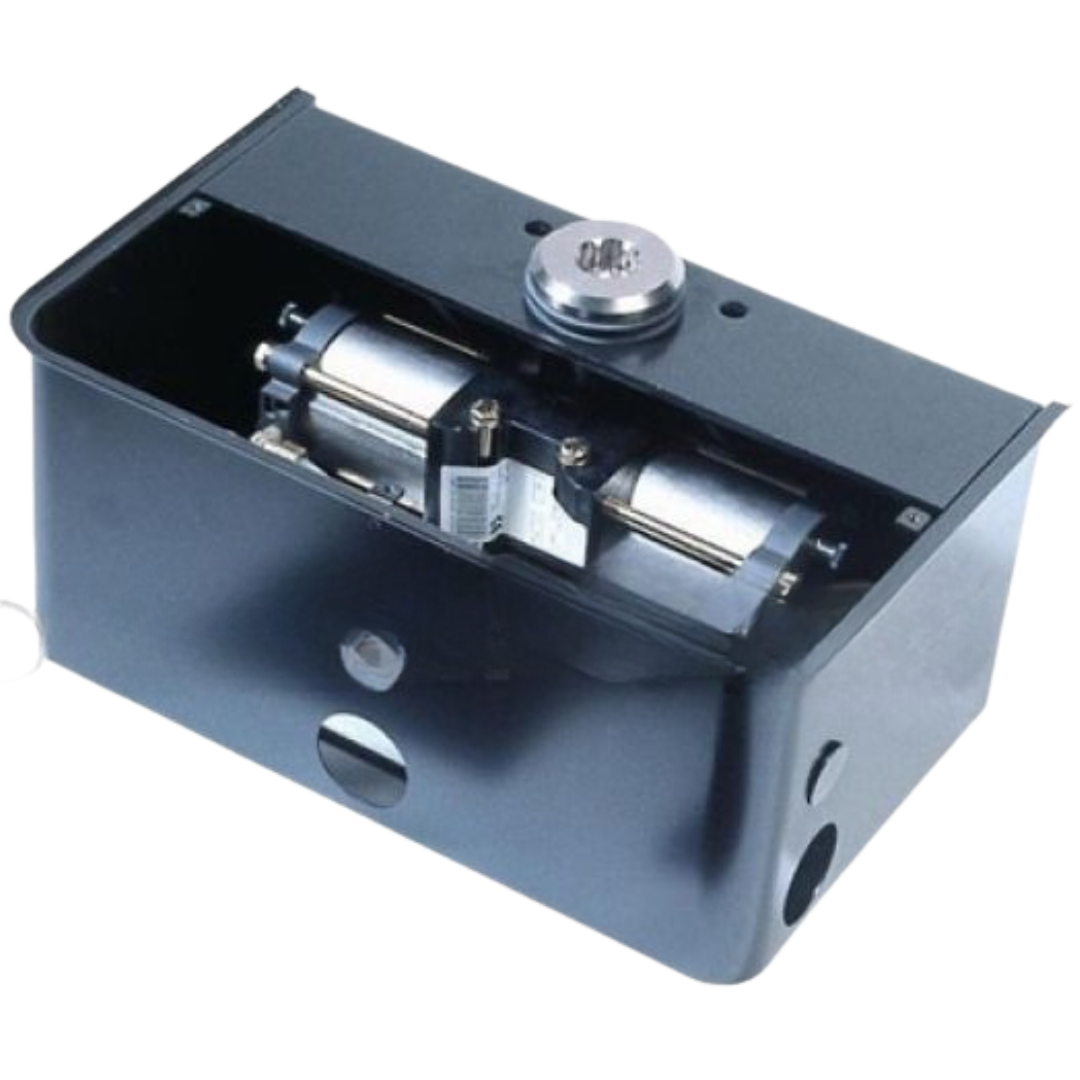

FAAC 750 CBAC 230V In-Ground Swing Hydraulic Gate Opener

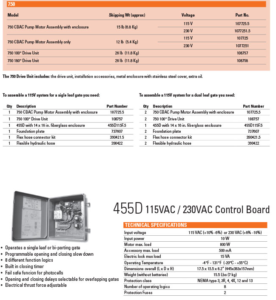

– 1 750 CBAC 230VAC Pump Motor Assembly with Enclosure – 1077251.5
– 1 Foundation Plate – 737607
– 1 Flex Hose Connector Kit – 390421.5
– 1 Flexible Hydraulic Hose – 390422
– 1 750 Drive Unit – Choose 100° or 180°
– 1 455D with 14″ x 16″ Fiberglass Enclosure 230VAC – 455D220F.5

For Bi-Parting Gates, order:

– 2 750 CBAC 230VAC Pump Motor Assembly with Enclosure – 1077251.5
– 2 Foundation Plate – 737607
– 2 Flex Hose Connector Kit – 390421.5
– 2 Flexible Hydraulic Hose – 390422
– 2 750 Drive Unit – Choose 100° or 180°
– 1 455D with 14″ x 16″ Fiberglass Enclosure 230VAC – 455D220F.5

*Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 (photo eye) and/or Type B2 (sensing edge) entrapment prevention devices must be installed or OPERATOR WILL NOT RUN.

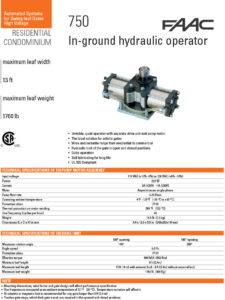

Features

• Invisible, quiet operator with separate drive unit and pump motor
• The ideal solution for artistic gates
• Wide and versatile range from residential to commercial
• Hydraulic lock of the gate in open and closed positions
• quiet operation
• Self lubricating for long life
• UL 325 Compliant

Note:

• Mounting dimensions, wind factor and gate design will affect performance specification
• Use frequency is measured at an ambient temperature of 72°F (20°C). Temperature variation will affect it.
• An electric or magnetic lock is REQUIRED for any gate longer than 8 ft (2.4 m)• Positive gate stops, which limit gate travel, are REQUIRED in the opened and closed positions
