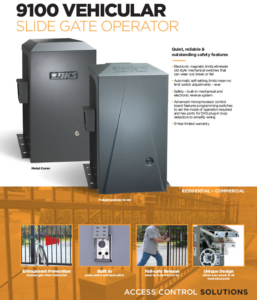

DoorKing 9100 Slide Gate Operator

DKS 9100 Slide Gate Operator provides durability through high-cycle usage, all in a solid design. The innovative fail-safe design of these Operators significantly reduces the chance of injury or entrapment and makes these Operators the safest residential Slide Gate Operator in the market today. Designed with versatility in mind, the 9100 Operators can be configured for front, center or rear drive applications and can be pad or post mounted. They are available with a metal or polypropylene (Poly) cover. Operators with the Poly Cover include a MicroPlus RF Kit (1 TX + 1 REC).

*Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 (photo eye) and/or Type B2 (sensing edge) entrapment prevention devices must be installed or OPERATOR WILL NOT RUN.

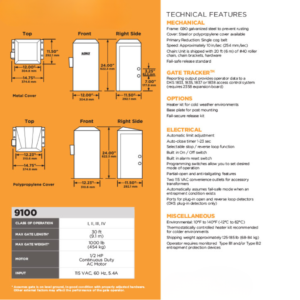

Features

• Self-adjusting, no maintenance magnetic limits
• Partial-open feature
• Anti-tailgating feature
• Gate tracker reporting output
• Ports for plug-in loop detectors
• Two convenience outlets
• Fail-safe release (fail-secure optional)
• Programming switches
• Built-in reset switch
• Built-in power On/Off switch
• Maximum gate length 30-feet
• Maximum gate weight 1000 pounds*. (*Assumes gate is on level ground, in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.)
• 1/2 HP continuous-duty motor
• 115 VAC, 5.4 Amps
• Operator is shipped with chain brackets and 20-feet of #40 chain
• Class I, II, III and IV applications
• Compliant with UL 325 and 991. ETL Listed.
• Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment protection devices are required to be installed with this gate operator
• MADE IN USA

Options

• Nickel plated chain
• Plug-in loop detectors
• Heater kit for cold environments
• Base plate to post mount this operator (does not include posts)
• Surge suppressors
