EMX 1200-1 MRD-1P Radar Presence Sensor

EMX MRD-1P OVERVIEW

Introducing the MRD-1P Radar Presence Sensor from EMX Industries — a highly accurate, durable solution for detecting vehicles or pedestrians near barrier arms.

This advanced radar sensor detects obstructions over a configurable range of 1 ft to 30 ft (0.3 – 10 m), with a precision measurement down to 0.04″ (1 mm). Its microwave beam performs reliably even in harsh environments, unaffected by rain, snow, ice, or fog.

The MRD-1P features flexible relay outputs for pulse-on-entry and pulse-on-exit signaling, along with a fully featured menu for deeper customization using its intuitive pushbuttons and 3-digit display. Installation is made simple with visual beam shape guidance and a detachable screw terminal block for ease of wiring.

With robust design, fast response time, and superior detection capability, the MRD-1P offers the reliability and performance you need for effective vehicle and pedestrian detection at access points. Enhance your site security and operational efficiency with the MRD-1P.

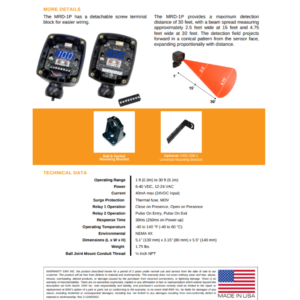

Features of the MRD-1P Radar Sensor

Accurate detection of vehicles and pedestrians

Configurable detection range: 1 ft to 30 ft (0.3 – 10 m)

Precision measurement: down to 0.04″ (1 mm)

Works in all weather conditions (rain, snow, fog, ice)

Form C relay outputs for versatile signaling

Solid-state relay outputs for pulse-on-entry / pulse-on-exit

Full-feature menu with pushbuttons and 3-digit display

Detachable screw terminal block for easy wiring

Relay outputs include:

Presence Relay: NC terminal opens when an obstruction is present, NO terminal closes when an obstruction is present

Pulse Relay: Configurable for Pulse on Entry, Pulse on Exit, or none

Configurable hold and pulse times
