DuraGate Swing Gate & Automation Kit – Modular Flat Top 11×4′ Single

This Complete Steel Driveway Gate with Automation Kit contains everything you need!

The Kit Includes:

• 1 – Single or Bi-Parting Steel Driveway Gate
• 2 – 4-3/4″ x 4-3/4″ x 7′ Steel Posts with Caps
• 1 – Adjustable Hinge Kit (2 Brackets, Bearings, Hinge Pins & Bolts) – 2 Kits for Dual
• 1 – Gate Operator Mounting Bracket, Strap & Hardware Set – 2 Sets for Dual
• 1 – Positive Stop Kit – 2 Kits for Dual
• 1 – Platinum Access Systems BLACT815-SK Single or BLACT815-MSK Dual Linear Arm Gate Operator w/ 5-Year Limited Manufacturer Warranty
• 1 – Gray Powder-Coated Aluminum Control Board Enclosure w/ Mounting Brackets (15.5″H x 14.5″W x 6.5″D)
• 1 – Radio Receiver – LiftMaster 850LM w/ 15′ Antenna Extension Kit – LiftMaster 86LM
• 2 – Remote 1-Button Visor Transmitters – LiftMaster 811LM
• 1 – UL325-2016 Compliant Seco-Larm E-936-S45RRGQ Reflective Photoelectric Beam Sensor
• 2 – “L” Mounting Brackets for Photo Beam & Reflector (E-931ACC-BLS7Q)

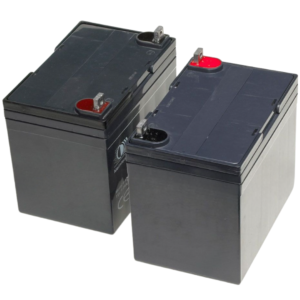

• 2 – 12V Sealed Lead Acid Batteries
• 40′ – Primary/Secondary Wire for Dual Operator Connection

We have taken our years of experience and knowledge of the gate industry and applied it towards the design and construction of our residential / light industrial line of gates. Manufactured exclusively for Gate Depot, using our exacting specifications, these ready-to-ship steel gates are classical designs which offer security at a great price. In addition, our Modular Style Single gates are shipped in 2 pieces with a Double Gate Bracket to attach the halves, saving on freight cost!!

The driveway gate is paired with the Platinum Access Systems BLACT815, a high-end automatic, linear arm gate opener. This operator has a wide range of features comparable with top brand names such as a 24VDC instant reversing, continuous duty motor. The Platinum Access Systems BLACT815 is well engineered and fabricated out of high-grade material.

The control cabinet is constructed of durable, powder coated aluminum and the control board accommodates all standard gate accessories such as photo eyes, loop detectors, keypads, magnetic and electric locks, warning lights, landscape lights, and timers.

The Platinum Access Systems BLACT815 uses standard 120/220VAC power input and includes a step-down transformer to 24VDC for a solar ready installation. The 24VDC operating voltage enables the unit to operate during primary power failure using two 12V batteries (included).

The kit also includes a receiver, antenna, 2 visor style remotes and a photo beam sensor. Everything you need to automate your driveway gate!

IMPORTANT NOTICE / DISCLAIMER:

– Bi-parting gate individual leaf size may vary up to 1/4″.
– We do not recommend purchasing two single gates to be installed as one bi-parting gate; height may vary up to 1″.
– There may be minor imperfections in the powder-coat finish. These will not affect the durability of the gate and if present, are not significantly noticeable.
– Before installing posts in concrete, MEASURE the gate to ensure it is square. Measure from corner to corner, then each end from top to bottom. Measurements should not vary more than 1/4″ – 1/2″.
– Gate width needs to be measured, then add 3-1/2″ between posts for a single gate or 4″ between posts for double gates.
– Measure All Gates Prior to Installation! Due to manufacturing variables, gates MAY vary in width by 1″ – 2″. Measure & confirm gate width PRIOR to setting posts.
– Shipping includes transporting the gate from our warehouse to the delivery address. It does NOT include lift gate service or unloading. Be prepared to unload the gate using a forklift with a boom or 3-4 people.
Gate Features:

• Heavy 2mm Wall on Frame and Stakes
• Hot Dip Galvanized Steel Tubing & Flat Bar
• Black Powder-Coat Finish
• Ships in 2 pieces to save on freight cost. There are mending plates located out of sight on the top and bottom of the frame, as well as bolt holes that are hidden in the center vertical of the gate frame.

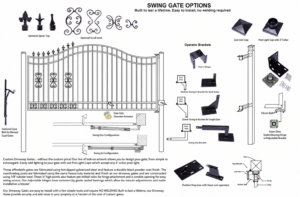

Posts & Hinges:

• 4mm (5/32″) Hot Dip Galvanized Steel
• Black Powder-Coat Finish
• Pre-Drilled Holes for Hinge Attachment
• Conduit Hole for Wiring

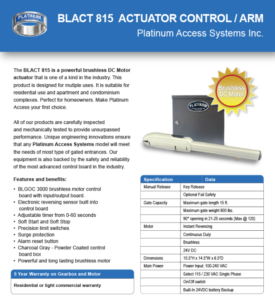

Platinum Access Systems BLACT815 Linear Arm Operator

• 800 Lbs x 15 Ft. Gate Capacity
• 120/220 VAC Power Source with Built-In Surge Protection or 24VDC Solar Ready
• Opens 90° in 21 – 25 Seconds / 120° Max
• Soft Start & Soft Stop – Minimizes wear on the gate system for longer life
• Selectable 120VAC/220VAC Power Input Source Switch
• Instant Reversing Continuous Duty Brushless 24VDC Motor
• Built In Battery Backup with Fail Secure or Open on Fail Option
• Built In Maglock Control
• Manual Key Release
• 110VAC Accessory Outlet
• Plug In Loop Detector Rack
• ETL Listed, UL 325 and UL 991 Compliant
• -4°F to +158°F Operating Temperature
• 5 Year Warranty On Gearbox and Motor
• 3 Year Warranty On Electronic Components

Access Control

• Receiver – LiftMaster 850LM
• 15′ Antenna Extension Kit – LiftMaster 86LM
• 2 – Remote 1-Button Visor Transmitters – LiftMaster 811LM
• Seco-Larm E-936-S45RRGQ Enforcer Reflective Photoelectric Beam Sensor w/ Protective Hood
  • 45 Ft. Range
  • Weatherproof IP66 Housing
  • Mounting Bracket w/Hardware Included
  • Adjustable Sensing Range
  • Compact Size
  • ETL UL325-2016 Compliant

Gate Manufacturing Specifications:
(Imperial Measurements are approximate – Included for your convenience)

Frame – Sides
40 x 30 x 2 mm Tube (1-1/2″ x 1-1/4″ x 5/64″)
Frame – Top & Bottom
40 x 40 x 2 mm Tube (1-1/2″ x 1-1/2″ x 5/64″)
2nd Rail – Top & Bottom
40 x 5 mm Flat Bar (1-1/2″ x 13/64″)
Stakes (Pickets)
20 x 20 x 2 mm (3/4″ x 3/4″ x 5/64″)
