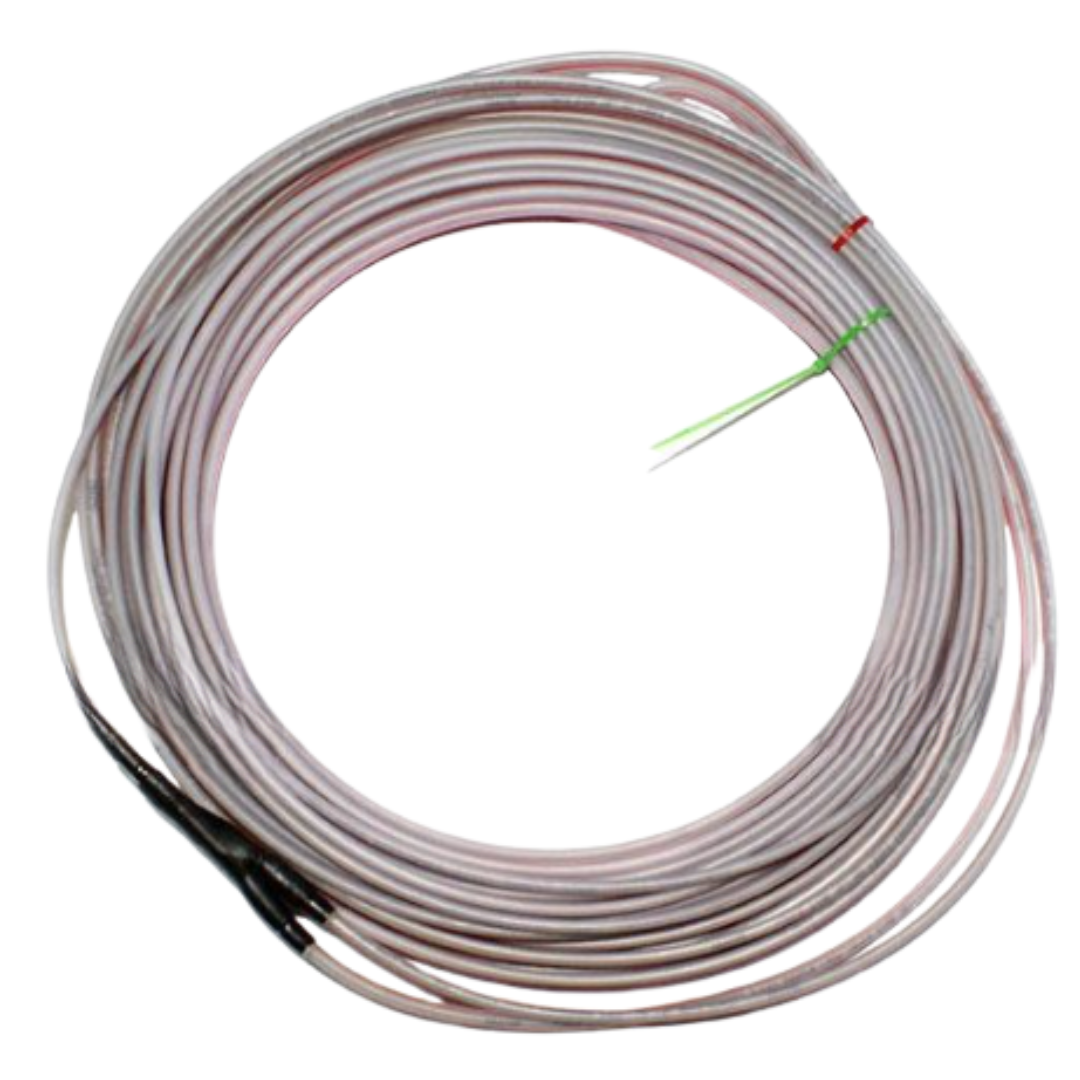

BD Loops SC32-20 Cut-In Loop – 4′ x 12′ w/ 20′ Lead

Preformed 3/16” Saw-Cut Loop

Used for saw-cut installations where a 3/16” groove is cut into the concrete or asphalt and the wire is stuffed and sealed (using loop sealant) into the surface. Custom polyethylene outer jacket protects a micro-dusted nylon coated inner jacketed 16AWG stranded wire. The saw-cut loop has a built in backer-rod securely fitting a 3/16” saw-cut groove eliminating the need to apply backer-rod to hold the loop to the bottom of the saw-cut groove and requires 30-40% less loop sealant to seal the groove. The entire loop including the lead-in fits within a 3/16” saw-cut groove preventing wasted time spent double saw-cutting or doubling blades to cut the home run lead-in.

Unlike loops wrapped by hand, The BD Loops preformed 3/16” Saw-Cut Loop’s wires are tightly bound by an outer jacket, this eliminates air pockets resulting in fewer repeat service calls due to phantom detections and detector lock-up caused by ground vibration.

Recommended installation tips:

• Works best with 3/16″ saw-cut blade or wider. (Does not work with 1/8″ blade.)
• Can be used with 1/4″ blade.
• Use the Saw-Cut Layout Kit to quickly lay out your cutting pattern.
• Loop should be installed black side up to ensure phasing direction matches.
• Push loop in starting with the red mark opposite the yoke.
• Align loop over saw-cut groove before insertion into the groove will prevent having to pull up and realign a “tight-fitting” loop.

For Educational Articles, Test Results, Help & Instructions, please visit BD Loops Education & More

MADE IN USA
