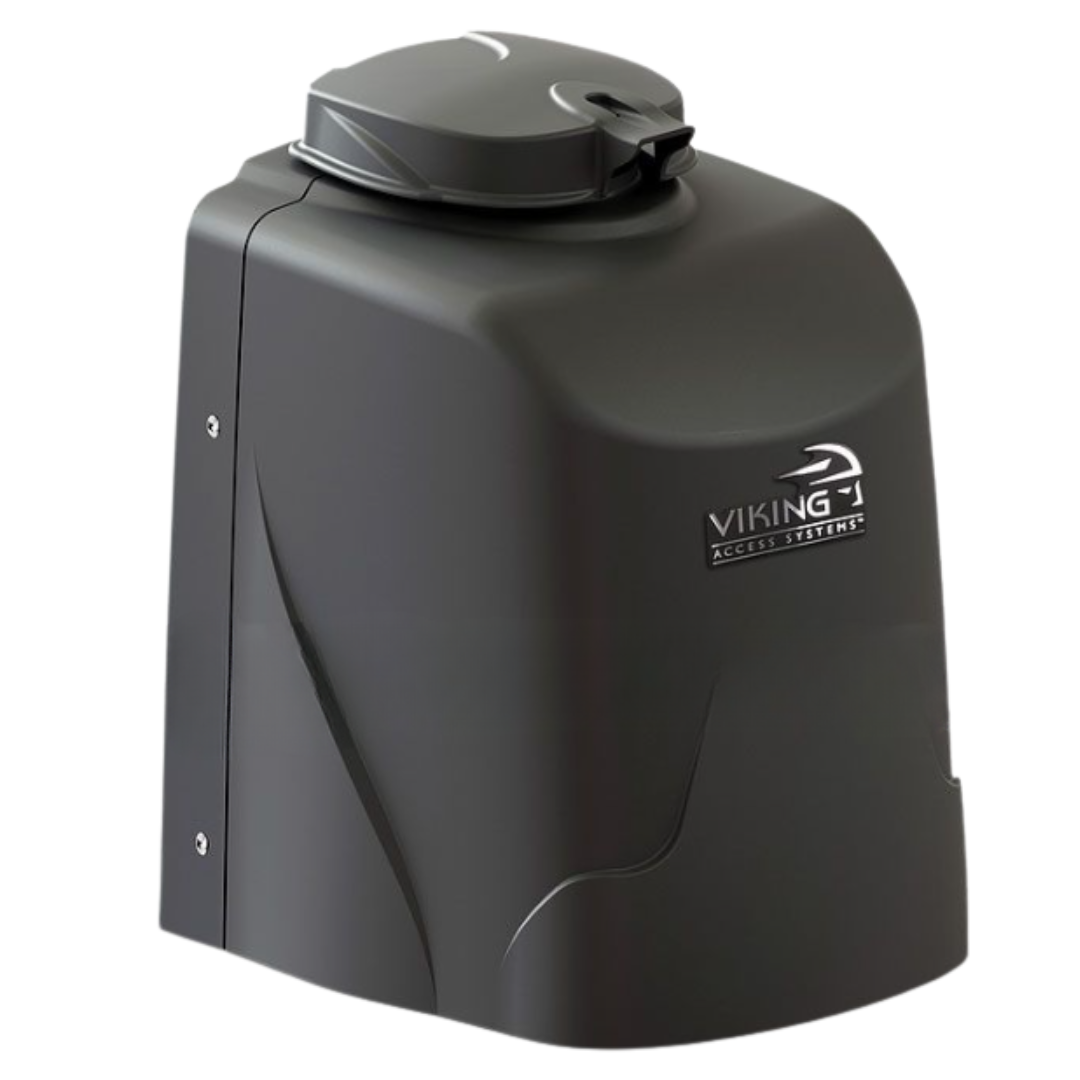

Viking Access T21 Swing Gate Operator

The T-21™ Swing Gate Operator, has a 1/4″ steel chassis with multi-layer corrosion protection. This ensures reliable, long-lasting operation in the harshest of environments at your home or business. Built-in heater with thermostat control, 120/240 VAC operation, Viking™s true battery backup and smooth start / stop operation are all standard features in this operator. This powerful swing gate operator has gate capacity of up to 2000 Lbs and 12 ft. The removable power supply box includes LED indicators for your convenience and communicates to the V-Flex™ LCD screen, displaying the status of the AC line, surge protection and fuses of the operator. All Viking operators come with the most robust lightning strike protection built into every machine, offering peace of mind. The T-21™ comes with a 5 year limited Manufacturer Warranty.

IMPORTANT: SECONDARY PROTECTION MUST BE INSTALLED

REQUIRED BY UL 325, an approved MONITORED secondary entrapment protection sensor is REQUIRED to be installed in all areas accessible to potential entrapment and pinch points. At least ONE monitored “10K Resistor Based” sensor MUST be connected or OPERATOR WILL NOT RUN.

The following devices comply with UL 325 and have been tested for use with Viking Access Systems gate operators:

• Photoelectric Beam (non-contact sensor) – MILLER EDGE 10K Resistor based
• Edge Sensor (contact sensor) – MILLER EDGE 10K Resistor based model ME110-T2, ME120-T2, MGR20-T2, MGS20-T2

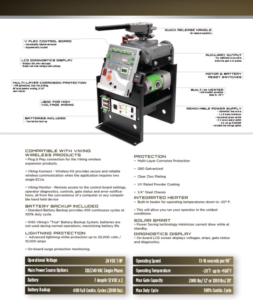

Features

• Plug & Play connection for the Viking wireless expansion products
• Viking Konnect – Wireless Kit provides secure and reliable wireless communication when the application requires two single ECUs
• Viking Monitor – Remote access to the control board settings, operator diagnostics, controls, gate status and error notifications, all from the convenience of a computer or any compatible hand held device
• Standard Battery Backup provides 400 continuous cycles at 100% duty cycle
• With Viking’s “True” Battery Backup System, batteries are not used during normal operations, maximizing battery life
• Advanced lightning strike protection up to 20,000 volts / 10,000 amps
• On-board surge protection monitoring
• Multi-Layer Corrosion Protection
• G90 Galvanized
• Clear Zinc Plating
• UV Rated Powder Coating
• 1/4″ Steel Chassis
• Built-in heater for operating temperatures down to -20° F
• This will allow you run your operator in the coldest conditions
• Power Saving technology minimizes current draw while at standby
• On-board LCD screen displays voltages, amps, gate status and diagnostics
• Operational Voltage – 24 VDC 1 HP
• Main Power Source Options – 120/240 VAC Single Phase
• Battery – 7 AmpHr 12 VDC x 2
• Battery Backup – 400 Full Contin. Cycles (2000 lbs)
• Operating Speed – 13-16 seconds per 90°
• Max Gate Capacity – 2000 lbs / 12′ or 1200 lbs / 20′
• Max Duty Cycle – 100% Contin. Cycle
