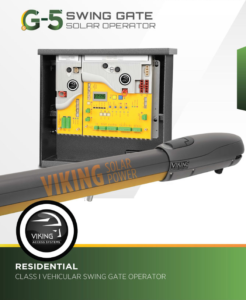

Viking Access G5 Solar Linear Arm Operator

Once again Viking Access Systems raises the bar and sets a new standard in solar operation. Introducing the newly design G-5s. Viking’s state of the art Solar Technology has achieved the ONLY UL certification for number of daily solar cycles in the world. The G-5s is the ONLY solar gate operator providing up to 200 cycles per day on a single 10 Watts solar panel. Therefore Viking Access Systems is the ONLY choice for high efficiency, high performance solar gate operator.

IMPORTANT: SECONDARY PROTECTION MUST BE INSTALLED

REQUIRED BY UL 325, an approved MONITORED secondary entrapment protection sensor is REQUIRED to be installed in all areas accessible to potential entrapment and pinch points. At least ONE monitored “10K Resistor Based” sensor MUST be connected or OPERATOR WILL NOT RUN.

The following devices comply with UL 325 and have been tested for use with Viking Access Systems gate operators:

• Photoelectric Beam (non-contact sensor) – MILLER EDGE 10K Resistor based
• Edge Sensor (contact sensor) – MILLER EDGE 10K Resistor based model ME110-T2, ME120-T2, MGR20-T2, MGS20-T2

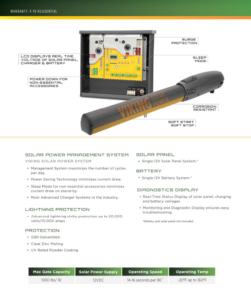

Features

• Viking Solar Power Management System Maximizes the Number of Cycles Per Day
• Power Saving Technology Minimizes Current Draw
• Sleep Mode for Non- Essential Accessories Minimizes Current Draw on Stand-By
• Most Advanced Charger Systems in the Industry
• Advance Lightning Strike Protection Up 20,000 Volts/ 10,000 Amps
• Aluminum Alloy & Powder Coating for Superior Protection Against Corrosion
• Single 12V Solar Panel System
• Single 12V Battery System
• Real-Time Status Display Of Solar Panel, Charging and Battery Voltages
• Monitoring and Diagnostic Display Ensures Easy Troubleshooting
• Soft Start / Soft Stop
• Speed Control
• Adjustable Overlap
