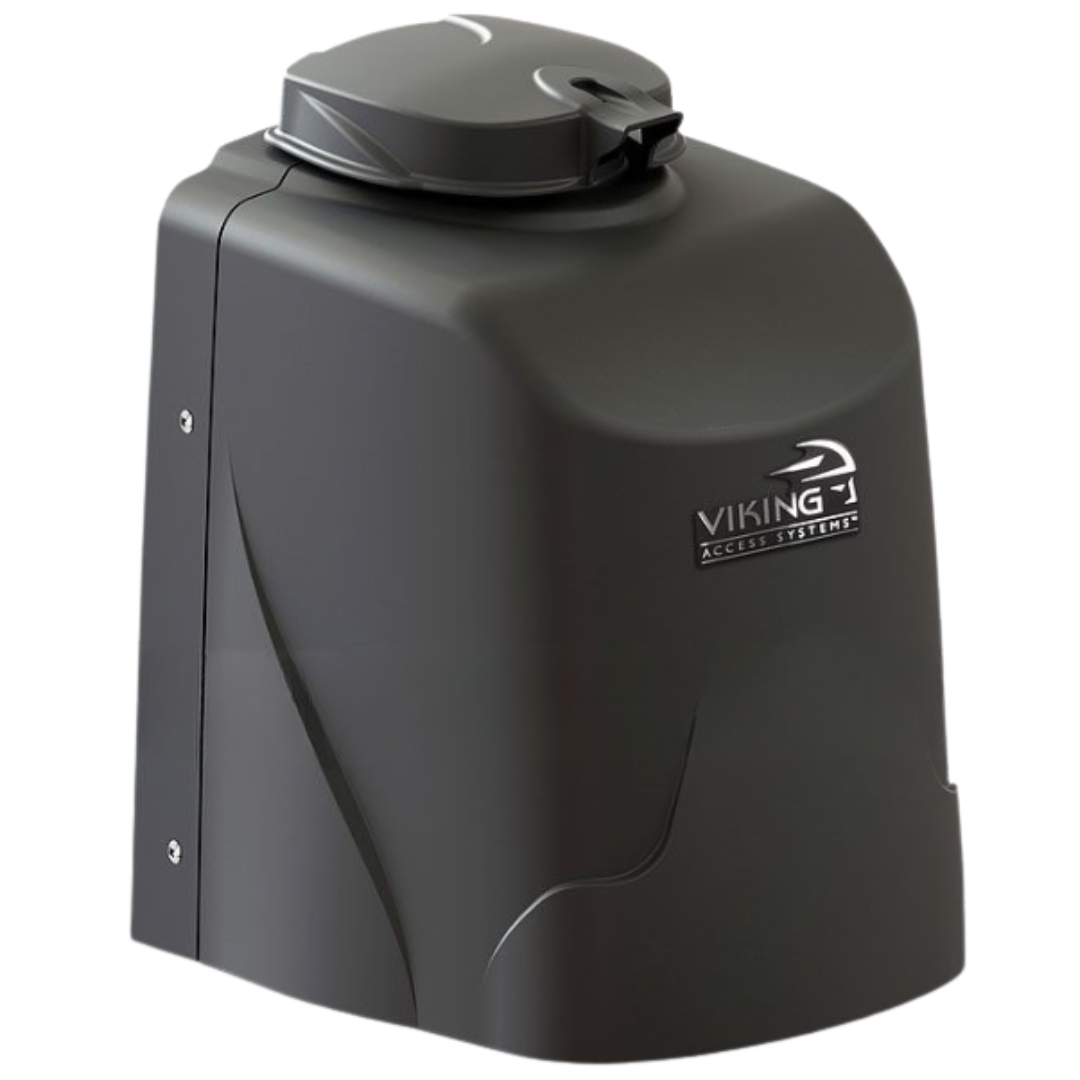

Viking Access F1NX Swing Gate Operator

The F-1™ Swing Gate Operator, includes the V-Flex control board and a removable power supply box for low voltage wiring. The removable power supply box allows you to run low voltage to the gate operator rather than high voltage which removes the need to trench high voltage wires. This can save the home or business owner thousands in labor and permit costs. The V-Flex control board provides a LCD display for diagnostics and operator status. The new 1/4″ steel chassis allows an increased handling capacity for gates up to 1500 Lbs. The F-1™ operator also features Viking’s soft-start / soft-stop, built-in heater and Viking’s true battery backup system. Smooth gate operation, compliant to both ETL and UL standards with 5 year limited Manufacturer Warranty makes the F-1™ operator the ideal choice for your gate automation needs.

IMPORTANT: SECONDARY PROTECTION MUST BE INSTALLED

REQUIRED BY UL 325, an approved MONITORED secondary entrapment protection sensor is REQUIRED to be installed in all areas accessible to potential entrapment and pinch points. At least ONE monitored “10K Resistor Based” sensor MUST be connected or OPERATOR WILL NOT RUN.

The following devices comply with UL 325 and have been tested for use with Viking Access Systems gate operators:

• Photoelectric Beam (non-contact sensor) – MILLER EDGE 10K Resistor based
• Edge Sensor (contact sensor) – MILLER EDGE 10K Resistor based model ME110-T2, ME120-T2, MGR20-T2, MGS20-T2

Features

• Plug & Play connection for the Viking wireless expansion products
• Viking Konnect – Wireless Kit provides secure and reliable wireless communication when the application requires two single ECUs
• Viking Monitor – Remote access to the control board settings, operator diagnostics, controls, gate status and error notifications, all from the convenience of a computer or any compatible hand held device
• Standard Battery Backup provides 400 continuous cycles at 100% duty cycle
• With Viking’s “True” Battery Backup System, batteries are not used during normal operations, maximizing battery life
• Advanced lightning strike protection up to 20,000 volts / 10,000 amps
• On-board surge protection monitoring
• Multi-Layer Corrosion Protection
• G90 Galvanized
• Clear Zinc Plating
• UV Rated Powder Coating
• 1/4″ Steel Chassis
• Built-in heater for operating temperatures down to -20° F
• This will allow you run your operator in the coldest conditions
• Power Saving technology minimizes current draw while at standby
• On-board LCD screen displays voltages, amps, gate status and diagnostics.
• Operational Voltage – 24 VDC 1/2 HP
• Main Power Source Options – 120/240 VAC Single Phase
• Battery – 7 AmpHr 12 VDC x 2
• Battery Backup – 400 Full Contin. Cycles (1500 lbs)
• Operating Speed – 13-16 seconds per 90°
• Operating Temperature – -20°F up to +160°F
• Max Gate Capacity – 1500 lbs/ 12′ or 1000 lbs/ 16′
• Max Duty Cycle – 100% Contin. Cycle
