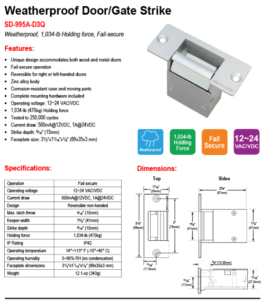

Seco-Larm SD-995A-D3Q Electric Strike

Features

• Unique design accommodates both wood and metal doors
• Fail-secure operation
• Reversible for right or left-handed doors
• Zinc alloy body
• Corrosion-resistant case and moving parts
• Complete mounting hardware included
• Operating voltage: 12~24 VAC/VDC
• 1,034-lb (470kg) Holding force
• Tested to 250,000 cycles
• Current draw: 500mA@12VDC, 1A@24VDC
• Strike depth: 9/16″ (15mm)
• Faceplate size: 31/2″x17/16″x1/8″ (89x35x3 mm)
• Weather-resistant IP42

Specifications

• 12~24 VAC/VDC Operating Voltage
• Fail-Secure Operation
• 500MA@12VDC, 1A@24VDC Current Draw
• 1-5/8″ (41mm) Keeper Width
• Reversible non-handed Design
• 9/16″ (15mm) Strike Depth
• 14°~113° F (-10°~45° C) Operating Temperature
• 0~95% RH (no condensation) Operating Humidity
• 3-1/2″x1-7/16″x1/8″ (89x35x3 mm) Dimensions
• 1,034-lb (470kg) Holding Force
• Weather-resistant IP42 IP Rating
