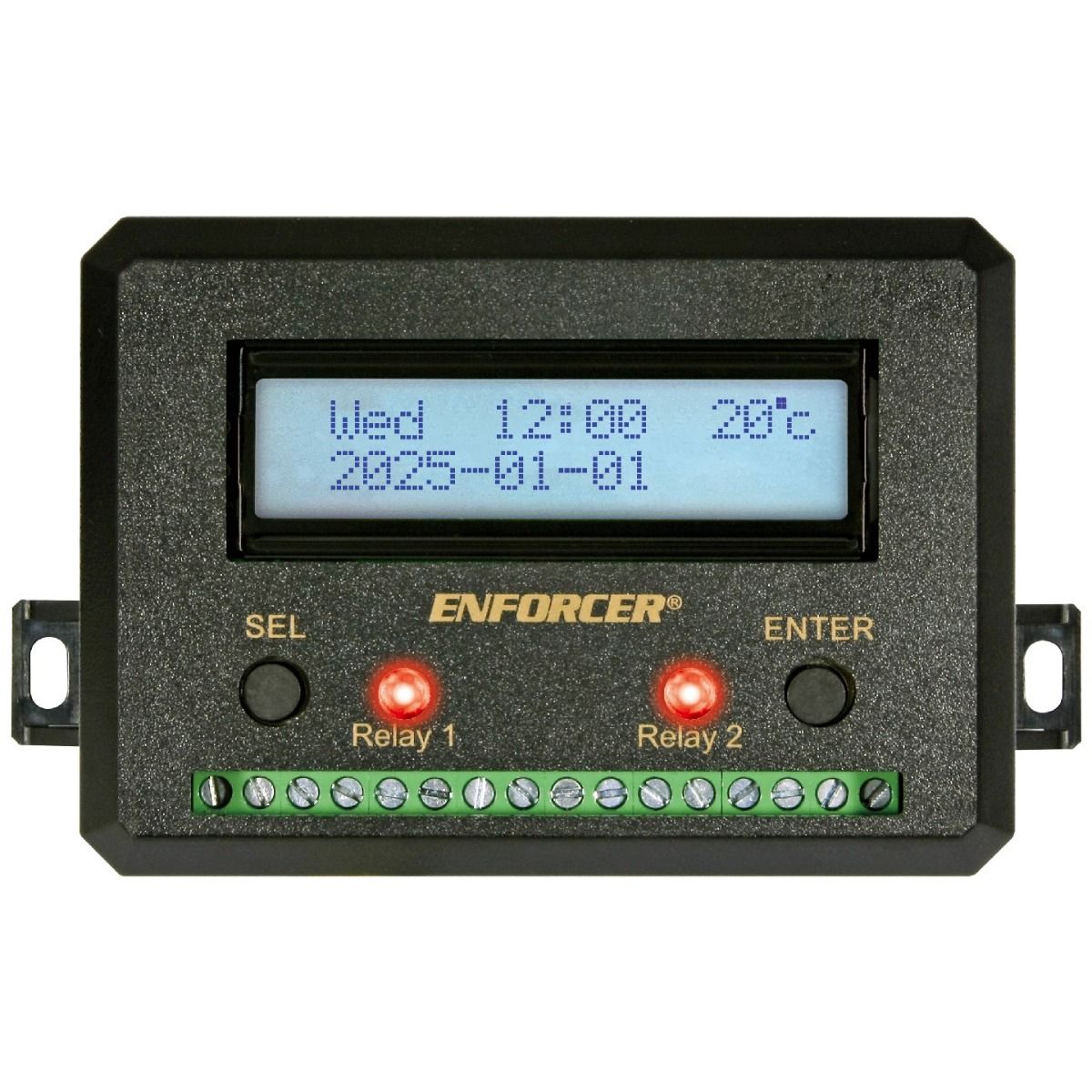

Seco-Larm SA-027HQ 365 Day Programmable Timer

Description

The ENFORCER SA-027HQ Annual Timer can be programmed to operate two Form C relays 24 hours a day, for an entire year for various applications including security, access control, lighting, and environmental control. Each relay can be programmed for up to 99 events with each event on a weekly or daily schedule. Block programming allows events to be repeated on consecutive days. Twenty programmable holidays disable the timer for a single day or the same day yearly.

Features

• Two N.O. or N.C. Form C relays, 10A@14VDC, one egress input per relay
• Each relay programmable for 99 events, to a total of 198 individual programmable events
• Each event can be set weekly, daily, or hourly, over the course of a year
• Passcode protection can be turned ON or OFF
• Block programming allows events to be repeated on consecutive days
• First-person-in function interrupts the normal operation of the annual timer
• Event outputs can be programmed to disable, ON, OFF, shunt, or momentary (1~99 seconds)
• 20 Programmable holidays
• Tandem mode allows both relays to operate simultaneously
• Built-in clock backup capacitor (saves date/time 7-10 days after power loss)
• Built-in smart backup battery charger for external backup battery (not included)
• Compensates for leap years and can be set for Standard or Daylight Savings Time
• Alphanumeric backlit LCD display for easy programming
• Exposed terminals for easy installation

Specifications

• 12~24 VDC/VAC Operating Voltage
• 2 Form C Relays
• 10A@14VDC Relay Rating
• Active: 60mA@12VDC ±10% (per channel) | Standby: 14mA@12VDC ±10% Current Draw
• 99 for each relay, 198 total Number of Programmable Events
• Backup battery type: 12VDC (not included)
• 20 Programmable Holidays
• Battery Charging Current: Smart charge, 50mA max., when battery is ?11.5V and ?12.8V
• 4-digits, numeric, ON/OFF Security Code
• Dimensions: 4-1/8″ x 3″ x 1-5/16″ (105 x 76 x 33 mm)
