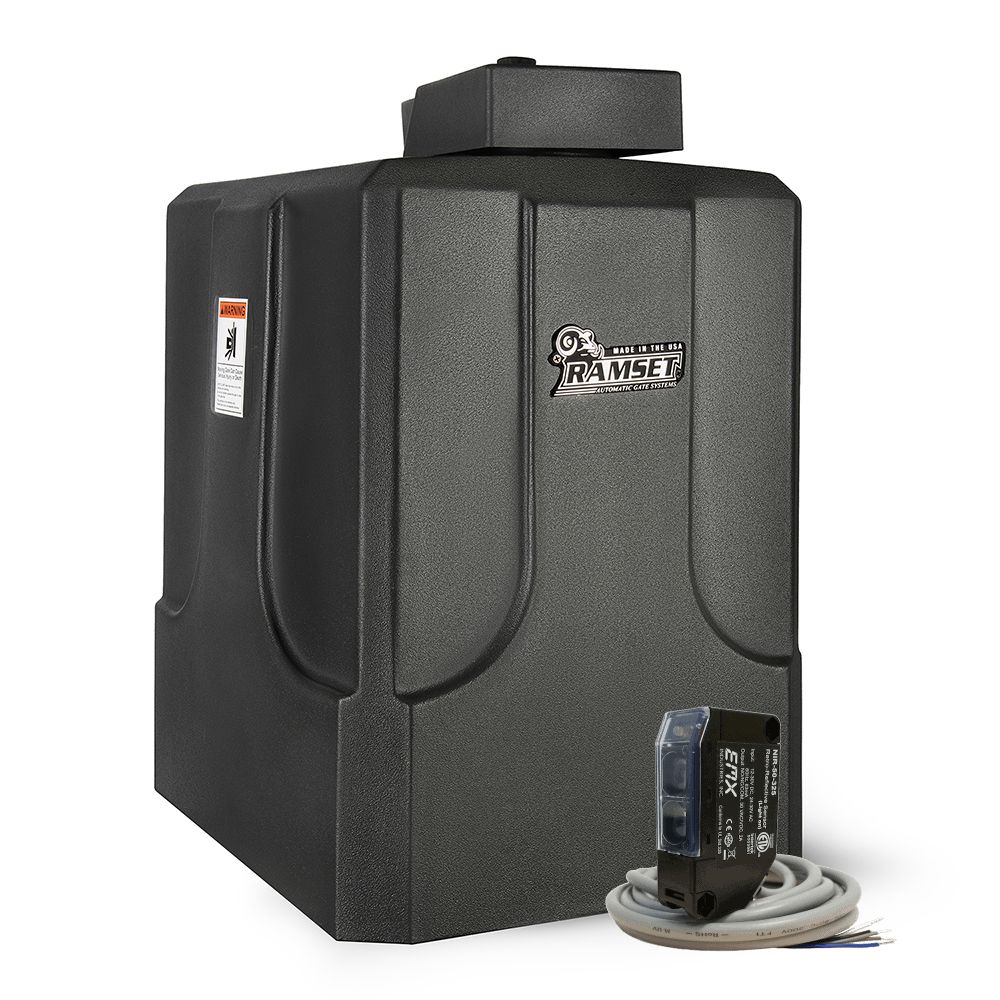

Ramset RAM 30-30-DC Swing Operators

Features

• Slow Stop, Soft Start
• Allows for a smooth gate operation without abrupt stops or harsh start
• Battery Back Up System
• In the event of a loss of power that gate operator will go into battery mode. This allows your gate to continue to operate for a limited period of time, until power is restored
• Emergency Foot Pedal Release
• Ability to manually open you gate in case of an emergency
• Easy installation
• EP Learn Mode: Created for the convenience of installers to easily install photoeyes
• Left Right Switch: Change the direction of the installation with the switch of a button
• Close Delay: Adjustable timer, to meet the requirements of each unique installation
• Fail Safe/Secure
• When the battery reached 90% of its capacity and AC power remains unavailable, our system offers you the flexibility to choose the gate’s fail position. The gate will either fail in the open or closed position, depending on your needs.
• MADE IN USA

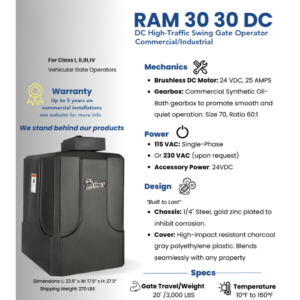

Specifications

• Class: Commercial/ Industrial
• Max Gate Weight: 3,000 lbs
• Max Gate Length: 22′
• Motor: “BRUSHLESS 24 VDC, 25 AMPS”
• Gate Speed: 12″ per Second
• VAC: 115- Single phase
• Battery Backup System: (2) 7Ah 12VDC Batteries
• W x L x H: 17.5″ x 23.5″ x 27.5″

Warranty Information

For single Family Residential installations: uninterrupted seven (7) years on motor and gearbox and uninterrupted five (5) years on the logic and driver board of the gate operator from the date of purchase.

For commercial properties, apartment buildings, condominium buildings, townhomes, and other multi-family residences: uninterrupted five (5) years on motor, gearbox, logic board and driver board of the gate operator from the date of purchase.
