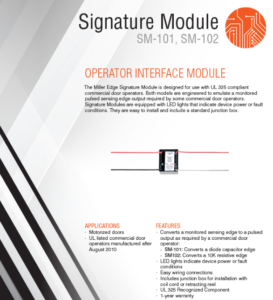

Miller Edge SM-101 Signature Module – T3 Monitored Plugs

The Miller Edge Signature Module is designed for use with UL 325 compliant commercial door operators. Both models are engineered to emulate a monitored pulsed sensing edge output required by some commercial door operators. Signature Modules are equipped with LED lights that indicate device power or fault conditions. They are easy to install and include a standard junction box.

APPLICATIONS

• Motorized doors
• UL listed commercial door operators manufactured after August 2010

FEATURES

• Converts a monitored sensing edge to a pulsed output as required by a commercial door operator:
  • SM-101: Converts a diode capacitor edge
  • SM102: Converts a 10K resistive edge
• LED lights indicate device power or fault conditions
• Easy wiring connections
• Includes junction box for installation with coil cord or retracting reel
• UL 325 Recognized Component
• 1-year warranty

PERFORMANCE:

• Operating Temperature: -35°C to +70°C (-31°F to +158°F)

RB-G-RX10 Receiver

ELECTRICAL:

• Power Source: Photo eye input
• Current Consumption: 30 mA
• Input: Diode capacitor (monitored) sensing edge
• Output: Pulsed (monitored)
• Relay Rating: Class 2 device

PHYSICAL:

• Dimensions:
  • Module: 1.8″H x 1.25″W x 0.8″D (46 x 32 x 20 mm)
  • Junction box: 1.5″H x 4″W x 2″D (38 x 102 x 51 mm)
• Enclosure Material:
  • Module: ABS plastic with epoxy
  • Junction box: Galvanized steel
• LED Indicators: Power, fault
• Degree of Protection:
  • Module: NEMA 4
  • Junction box: UL Listed
