Best Seller
FAAC S800H CBAC Hydraulic Swing Gate Operator
Choose 100° or 180° Opening

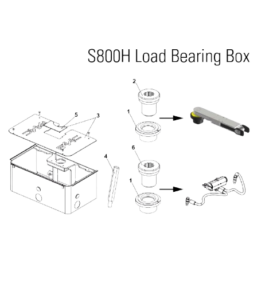

Available with Stainless Steel Load Bearing Box
• 13′ x 1,760 Lbs
• 115VAC Power Source / 24VDC Operating Voltage
• Opens 90° ~ 11 Seconds
• Continuous Duty
• 24VDC Battery Backup System w/ (2) 8-Ah Batteries
• Includes Receiver, 2 Transmitters & Photo Eye
• 3-Year Limited Manufacturer Warranty
• 3-5 Day Lead Time
SKU# FAC-s800h-cbac-bundle
if this fits your vehicle.
Dispatch within 24 Hours : Your product will be shipped quickly.
3-Year Warranty: Gate Opener Depot USA is safe with warranty conditions.
Description
Product Details
Single Kit Includes:
– 1 Operator S800H CBAC – Various
– 1 Hydraulic Manual Release- 390035
– 1 Splined Shaft Collar w/Mounting Bolts – 390972
– 1 Support Box
– 1 E024U Enclosure Kit – 3350.1
– 2 Batteries 12V 8 Ah – 3540
– 1 Receiver 433 RC Plug In – 787741
– 2 4-channel transmitter XT4 433 RC – 787453
– 1 Pair of XP 30 photobeam photocells – 785105
Features
- Hybrid technology
- Integrated high resolution encoder for precise control of the operator position
- 100° and 180° opening angle versions
- Opening/Closing mechanical stops integrated
- Easy handling and installation thanks to the integrated handles
- Maximum safety thanks to the E024U control board reverse on contact feature
- Built in battery backup to ensure operation in case of power outage
- SBW version for use in areas subject to strong winds
- Compliant with UL325 for Class I,II,III and IV applications
Note:
• Mounting dimensions, wind factor and gate design will affect performance specification
• Use frequency is measured at an ambient temperature of 72°F (20°C) . Temperature variation will affect it.
• An electric or magnetic lock is recommended for any gate longer than 12 ft (3.6 m).
| Brand | FAAC |
|---|
