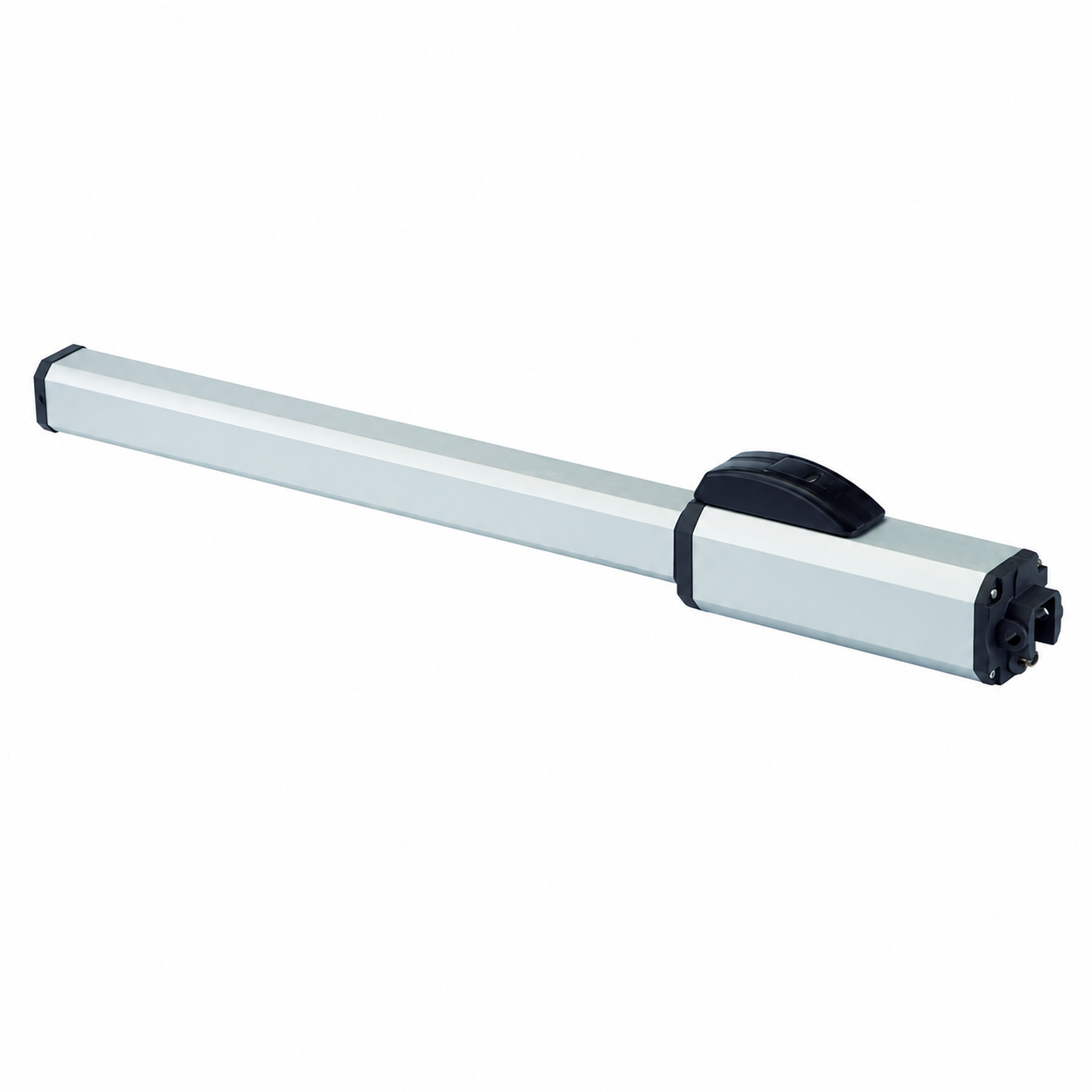

FAAC 422 Hydraulic Linear Arm Operator – CBAC / 230V

Choose Regular or Arctic Oil
• 10′ x 900 Lbs – 7-1/2′ Minimum
• 230VAC Power Source / 230VAC Operating Voltage
• 55 Cycles per Hour
• Hydraulic Locking Open &/Or Close
• Includes Receiver, 2 XT4 433RC Transmitters, & Photo Eye
• 3-Year Limited Manufacturer Warranty
• 3-5 Day Lead Time

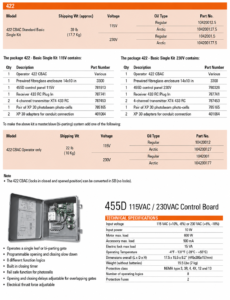

SKU#Single Kit Includes:

– 1 Operator 422 CBC 230V
– 1 Prewired 14″ x 16″ Fiberglass Enclosure – 3303
– 1 455D 230V Control Panel – 790945
– 1 Receiver 433 RC Plug In – 787741
– 2 4-channel transmitter XT4 433 RC – 787453
-1 Pair of XP 30 photobeam photocells – 785105

• Versatile hydraulic operator for residential and light commercial application
• Hydraulic lock of the gate in opened and closed positions

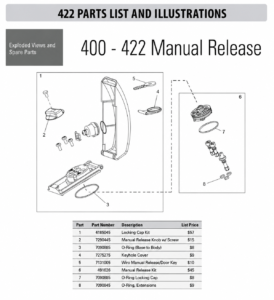

• Key protected manual release
• Quiet operation
• Self lubricating for long life
• UL 325 Compliant

Note:

• Mounting dimensions, wind factor and gate design will affect performance specification
• Use frequency is measured at an ambient temperature of 72°F (20°C). Temperature variation will affect it.
• The 422 CBAC (locked in closed and opened position) can be converted to SB (no locks). Call for more information.
• Positive gate stops, which limit gate travel, are required in the opened and closed positions FAC-422-230-bundle
