EMX Patriot-L Plus Long-Range RFID Kit
SKU: EMX-K-PATL-SA-500
if this fits your vehicle.
Dispatch within 24 Hours : Your product will be shipped quickly.
3-Year Warranty: Gate Opener Depot USA is safe with warranty conditions.
Description
EMX Patriot-L Plus Long-Range RFID Kit
Upgrade your facility with the Patriot-L Long-Range RFID Kit, a reliable and easy-to-deploy vehicle access solution designed for single-family homes, small businesses, and small gated communities. Proudly made in the USA, this system delivers dependable long-range performance with simple installation and flexible credential compatibility.
Designed as a true plug-and-use stand-alone system, the Patriot-L is ready to operate out of the box and supports up to 500 users, making it an excellent choice for smaller access control applications that still require professional-grade reliability.
Programming is straightforward using EMX’s free software, and the included serial connector ensures seamless communication with compatible controllers. The included VIPER UHF RFID windshield tags (50-pack) are nearly transparent, discreet, and easy to mount on windshields or headlamps for consistent long-range vehicle identification.
This kit is also compatible with Infinity, Rosslare, and Nedap credentials, providing flexibility for sites that use mixed credential types.

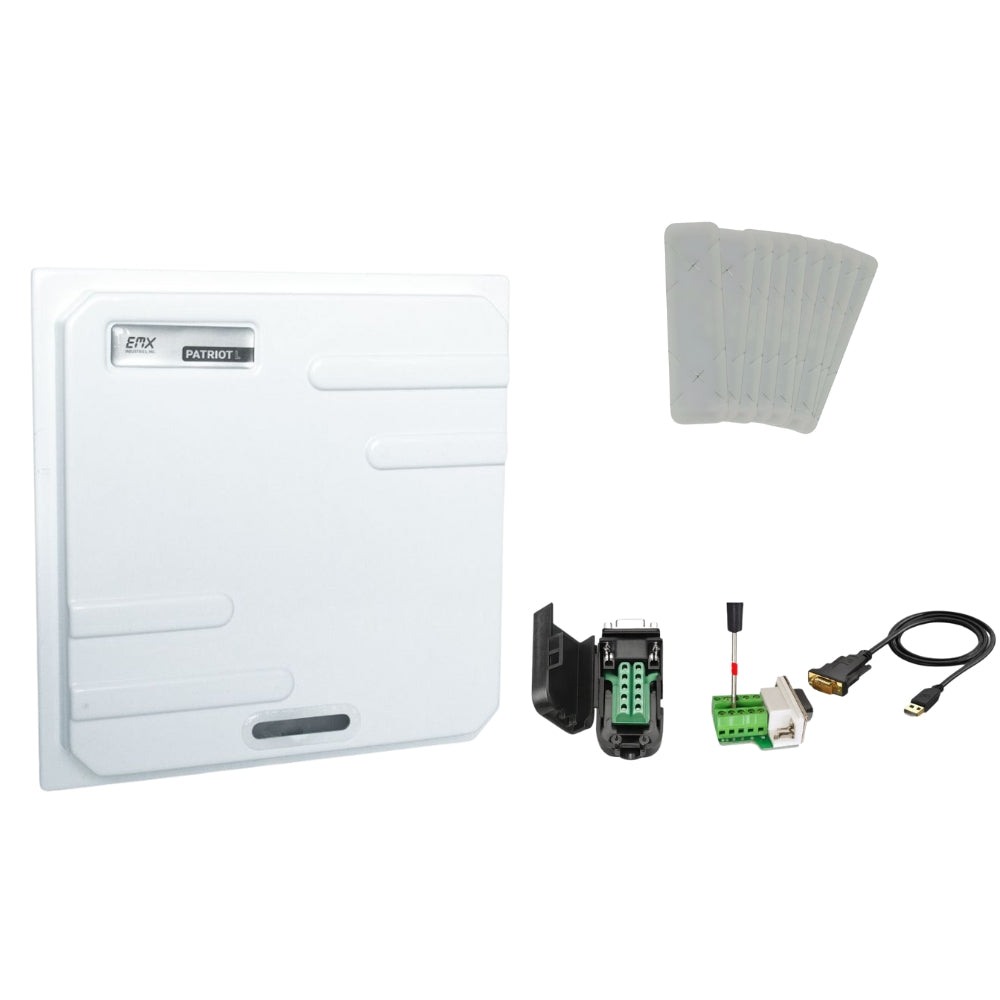

Kit Includes
- EMX Patriot L RFID Reader (Patriot-L)
- EMX UHF RFID Windshield Tag – Pack of 50 (TRES-900-WS421W)
- EMX Reader Serial Port Connector Kit (TRES-900-USB-RS232)
Manufacturer’s Warranty
- 2 yearsNote: Cards are programmed per order, and you can expect shipping within a week.
Features
- Fast Fulfillment: Industry-leading 3-day lead times on all RFID products.
- Versatile Credential Support: Advanced Read/Write capability for Rosslare, Nedap, and Infinity credentials (with AWID support coming soon).
- American-Made Reliability: Proudly Made in the USA (E-Series models include high-security OSDP support).
- Guaranteed Quality: Backed by a comprehensive 2-year warranty for peace of mind.
Specifications
Card Reader:
- TX / RX Frequency: 902-928 MHz
- Max RF: Power 30dBm (1 Watt)
- RF Protocol: ISO1800-6B, EPC Class 1, EPC Class 1 GEN 2
- Operating Method: Frequency Hopping Spread Spectrum
- Average Read Range (site and tag dependent): 18-25 feet
- Antenna: Linear 10dBi (Gain)
- Tag ID Modes: Timed Mode or Trigger Mode
- Wiegand Timing Parameters: Pulse Width 80µS, Pulse Period 1600µS (adjustable)
- Wiegand Formats Supported: 26, 30, 33, 34, 35, and 37-bit, PeachPass, Alabama Pass
- Identify Tag Time <8ms -Identify single tag
- Reading Tag Time: Reads every 8 bytes in less than 5ms
- Reading Tag Distance 18' - 25' (distance varies on location)
- LED Indicator: Yes
- Sounder Indicator: Yes
- Input: One-way trigger input
- Supply Voltage: 9-48VDC
- Included Power Supply: 110/240AC to 12VDC
- Included Mounting Bracket: Yes
- Max Current: 1.82 A max @ 5vDC, 470mA 5vDC in standby (trigger mode)
- Adjustable read range: Yes
- Wiegand: Yes
- RS-232: Yes
- Relay Contact: Yes
- RS-485 / OSDP: Yes
- RJ45 Ethernet Connector: No
- WiFi: No
- Standard Credential Tags: Window Tag, Hang Tag
- Bluetooth Credential Capable: Optional
- Extra Feature: Ability to store up to 500 Authorized Tag Numbers (5 site codes and 100 tags per site) in a reader for access control without a door controller
- Arming Input Capable: Yes
- Operating Humidity: 5% to 95% relative humidity, non-condensing
- Certifications: FCC Part 15 Subpart C and Canada RSS-210, FCC ID: Y3D-REDS
- Working Status Indiction: Audible Beeper, Built-in LED
- FCC Approval: Part 15
- Operational Temperature: -20°C to +70°C
- Size: 9.45″ x 9.45″ x 3.82″
- IP Rated: YES-IP65
Windshield Tag:
- Specifically designed for Automated Vehicle Identification (AVI), gated communities, toll collection, and parking management.
- Engineered for seamless application on vehicle windshields, ensuring optimal positioning for scanning.
- Available in various dimensions such as 4.0"×1.0" and 4.75"×0.625", catering to different user preferences and applications.
- Customizable options with your own brand graphics or plain and subtle designs, aligning with your branding strategy.
- Designed for compatibility with a range of RFID technologies, ensuring smooth integration and operations.
- User-friendly design and maintenance-free operation enhance the user experience.
Product Literature
EMX-Patriot-Serial-Port-Kit-Instructions
Additional information
| Brand | EMX |
|---|---|
| categories | Access Control |
