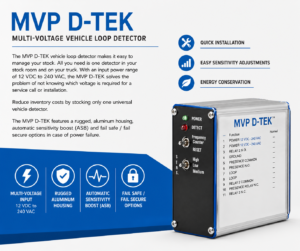

EMX 2550-1 MVP-D-TEK Inductive Loop Detector – Universal Voltage

The MVP D-TEK multi-voltage vehicle detector makes it simple to manage your stock. All you need is one detector in your stock room and on your truck. This multi-voltage vehicle detector solves the problem of not knowing which voltage to take for service a call or installation. Reduce the cost of inventory by stocking only one loop detector – with the universal voltage of our MVP D-TEK.

Features

• Multi-voltage power 12 to 220 VAC/DC
• Operates in both fail safe and fail secure modes
• 10 sensitivity settings
• Enhanced lightning/surge immunity
• Aluminum RF shield housing
• Built-in loop conditioner
• Loop isolation transformer
• Loop diagnostics
• Frequency counter
• Gold plated control contacts
• 2 relays (presence & pulse or presence)

MVP D-TEK Specifications

• Power Supply: 12VDC to 240VAC
• Current Consumption: 19.2mA @ 9VDC, 18.8 mA @ 12VAC/DC, 17.3 mA @ 24VAC, 9.5 mA @ 24VDC, 13.5 mA @ 115VAC, 11.0 mA @ 237VAC
• Operating Temp: -40°F to +180°F
• Surge Protection: Zener Diode /MOV
• Output Relays (2): 1Amp 30 VDC
• Loop Input: Transformer isolation, lightning and transient protection (1)
• Loop Inductance Range: 20 – 2000 µH Q-factor of 5 or higher
• Tuning: Automatic on reset or power up
• Tracking: Automatic for environmental changes
• Size: Height 3.25″ (83mm) Width 2.56″ (40mm) Length 3.65″ (90mm)
• Housing: Extruded Anodized Aluminum
• Connector: 86CP11 11 pin male
