EMX 1162-1 IRB-EXP Thru-Beam Photo Eye – Explosion Proof / 115′
• 115′ range
• Designed to operate in explosive environments
• NEMA 4 and 7 housing
• Copper free aluminum with epoxy finish
• Potentiometer range adjustment
• Thru beam design is not affected by shiny surfaces
• Modulated infrared
• No focusing lens
• 2-Year Limited Manufacturer Warranty
• MADE IN USA
if this fits your vehicle.
Dispatch within 24 Hours : Your product will be shipped quickly.
3-Year Warranty: Gate Opener Depot USA is safe with warranty conditions.
Description

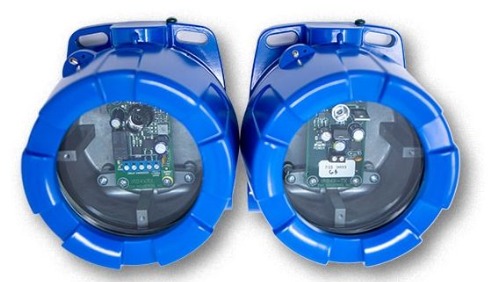

Designed for explosive environments, the rugged IRB-EXP explosion proof photo beam is used as a safety, reversing, or opening device in conjunction with automatic operators. The IRB-EXP explosion proof photo beam sensor features a 24° sensing angle for easy installation and alignment and 115-ft. operating range.
The lens-less design of the IRB-EXP makes it less sensitive to fog, dust, snow and sunlight, making it a more accurate explosion-proof photoeye.
- Power: 12—24volts AC or DC
- Current: TX = < 21mA, RX = 23mA standby 17mA detect
- Range: 3 — 115 feet
- Operating Temp: -40° F to +170° F
- Relay Contact Rating: 1A @ 24VDC or 120VAC
- Housing Material: NEMA 4 & 7 Cast Aluminum
- Dimensions: W — 5.25″ x H — 5.65″ x D — 4.8″
- Detection Angle: 18°
- Gain Adjustment: Potentiometer
- Certifications:
- Class I, Division 1, Groups A, B, C, D
- Class II, Division 1, Groups E, F, G
- Class III
- Class I, Zone 1, AEx db IIC Gb
- Zone 21, AEx tb IIIC
- Ex db IIC Gb
- Ex tb IIIC Db
- IP66/IP68/TYPE 4X
- Tamb: -55°C to +85°C
- UL Certificate Number: E518920
- CSA Certificate Number: 80011200
- MADE IN USA
| Manufacturer Part Number | EMX-1162-1 |
|---|---|
| Former Part Number | IRB-EXP |
| Brand | EMX |
