EMX 1112 IRB-325 Thru-Beam Photo Eyes – 65′
Choose Photo Eye Only or Kit
• 65′ range
• Thru beam configuration
• NEMA 4X enclosure
• UL325-2018 compliant
• Kit includes transmitter, receiver, and protective hoods
• 2-Year Limited Manufacturer Warranty
• MADE IN USA
SKU# EMX-1112-bundle
if this fits your vehicle.
Dispatch within 24 Hours : Your product will be shipped quickly.
3-Year Warranty: Gate Opener Depot USA is safe with warranty conditions.
Description
Product Details

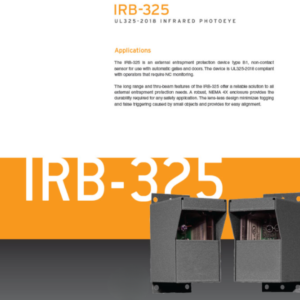

The IRB-325 is an external entrapment protection device, type B1, non-contact sensor for use with automatic gates and doors. This thru beam photoeye is powered by 12 VDC to 24 VAC and has an operating range up to 65 ft.
This photoeye is certified UL325-2018 compliant with operators that require NC monitoring.
The IRB-325’s powder coated steel hoods help protect against environmental exposure and accidental contact damage from vehicles and other equipment. A NEMA 4X enclosure provides the durability required for safety applications.
- Operating range: 6 to 65 feet
- Power supply: 12 VDC to 24VAC/DC
- Current consumption: 12 VDC standby/detect, 24VAC/DC standby/detect
- Receiver: 33mA/25mA, 56mA/38mA
- Transmitter: 47mA
- Relay contact rating: 1A @ 30VDC
- Operating temperature: -40°F — +170°F
- Housing material: UL and CSA Type 4, NEMA 4X, 3, 3R, 12, 13
- Housing dimensions: 5.03″ (128mm) x 3.06″ (78mm) x 3.02″ (77mm)
- Hood dimensions: 6.7″ (170mm) x 3.3″ (84mm) x 4.4″ (112mm)
- MADE IN USA
| Brand | EMX |
|---|
