Doorking 1810 Access Plus Telephone Entry System

The Access Plus line combines essential features of our most versatile solutions with the ease and accessibility of computer programming and control. Each Access Plus Series unit allows Voice and Data connection over either Cellular, VoIP, Wireless, or POTS. DKS offers easy ways to connect fast using the DKS IM Server and DKS Cellular services. With the easy to use Access Plus Account Manager programming software, you can customize the system immediately. Set up time zones, add or delete access codes, set up email notifications, and even lock or un-lock a door with the click of the mouse button.

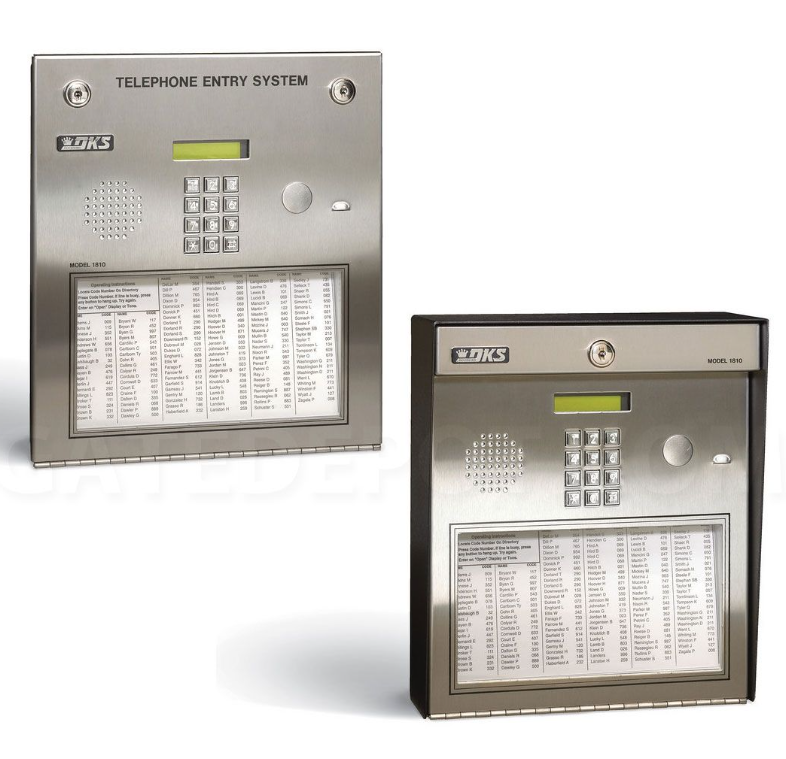

The 1810 Access Plus is a versatile PC Programmable Telephone Entry System that provides voice communication from the entry point to the resident or tenant. With the easy-to-use Access Plus Account Manager programming software, you can customize the system immediately. The 1810 Access Plus incorporates a built-in LED lighted paper directory that can be printed directly from the Software. An additional 23 numbers can be programmed when used with the 1816 Access Plus Intercom Expansion. The 1810 is ideal for residential, multi-home, small gated community or apartment house applications. Access Plus models do not have any programming display or electronic directory. Display area is covered with dark plastic on this model.

DoorKing’s Access PlusAccount Manager Software is a powerful, flexible and easy to use computer program that allows you to manage access control in a variety of controlled access applications.

Download Access Plus Programming Software
NOTES for Access Plus download:

Use this software with Access Plus systems with circuit board 1970-010 only. (This software cannot be used to program 1812 systems with 1871-010 or 1971-010 circuit boards.)

This program will operate in Windows 2000, Windows NT, Windows XP*, Windows Vista, Windows 7 – 8 – 10.

*This program will function with Windows XP provided that Microsoft continues their support of the XP downgrade DLL. If Microsoft discontinues their support iof the downgrade DLL, we will discontinue support of Windows XP.

• Up to 27 phone numbers (23 additional with 1816 AP intercom expansion)
• IP addressable – program from your PC via direct connection, LAN or an Internet connection
• Optional cellular adapter for wireless service
• Access Plus Account Manager software is a free download
• Control up to six (6) additional access points with cards, keypads or transmitters (RS-485)
• Optional relay board allows use of existing 26-bit wiegand devices
• Holiday schedule
• Four (4) hold open time zones
• Schedule un-lock / lock times
• Email notifications
• Live relay control from your PC
• 100 device codes (card, keypad, transmitter)
• 500 event history buffer
• 10 temporary access codes
• Built-in lighted directory for 27 names, easily printed with Access Plus software
• Provides voice communication from the entry point via the central office telephone service for up to 27 Residents/Tenants
• Can provide voice communication from the entry point for up to 23 residents/tenants without central office phone service by using the 1816 Access Plus telephone intercom add-on module
• Residents/Tenants can control two (2) doors or gates via their touch-tone telephone after voice communication is established with their guest
• Access Control devices include card readers, keypads, MicroPlus RF controls
• Up to six (6) additional entry points can be controlled via card, keypad or RF control
• 16 VAC, 20 VA (250 ma)
• U.L. listed power transformer provided
• Ringer equivalence: 0.0 A.
• Jack type: RJ11C or W.
• FCC (US): DUF6VT-12874-OT-0
• DOC (CAN): 1736 4507 A
• Complies with UL 294; ETL Listed

Options

• “No phone line” intercom system in conjunction with the DKS 1816 AP
• RF 485 Card Readers, Keypads, RF Controls and Conversion Boards
• Cellular adapter
• Relay boards for 26-bit devices
